Screw Class Selection Guide (Class 1–5)

Choosing the right screw class ensures the best performance and corrosion resistance for your application. Use this simple guide to select the right one:



Class 1 – General Indoor Use

  • Material: Heat-treated carbon steel
  • Marking: Z
  • Best for: Dry, indoor environments where corrosion exposure is minimal.



Class 2 – Light Outdoor or Covered Use

  • Material: Heat-treated carbon steel
  • Marking: Z2
  • Best for: Light outdoor or sheltered areas where limited moisture exposure may occur.


Class 3 – Moderate Outdoor Use

  • Material: Mechanically galvanised carbon steel
  • Marking: Z3
  • Best for: Outdoor structures and moderate weather exposure.


Class 4 – Heavy-Duty Outdoor Use

  • Material: Mechanically galvanised carbon steel
  • Marking: Z4
  • Best for: Harsh outdoor or industrial environments requiring high corrosion resistance.


Class 5 – Marine & Coastal Use

  • Coating: Zinc clear coating on 304-grade stainless steel
  • Material: Stainless steel (bi-metal option with carbon steel drill point)
  • Marking: Z5
  • Best for: Coastal, marine, or high-moisture environments where maximum corrosion protection is needed.


Roof Type Selection Guide

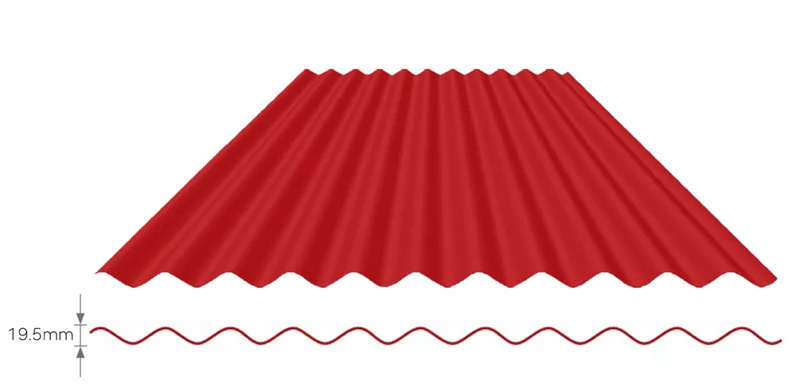

  • Corrugated Roof Sheeting (AZ150 and AZ200) ISO class 3 and 4 environments.

    Fixing onto steel purlins.

    Recommended ZAP roofing fasteners.

    Class 3 or Class 4 metal.

    • 12 (5.5mm) x 38mm Hex Flange with Seal
    • 12 (5.5mm) x 50mm Hex Flange with Seal

    ________________

    Fixing onto timber purlins.

    Recommended ZAP roofing fasteners.

    Class 3 or Class 4 timber.

    • 12 (5.5mm) x 65mm Hex Flange with Seal
    • 12 (5.5mm) x 75mm Hex Flange with Seal

    ________________

    Side Cladding – Size: 12 (5.5mm) x 25mm Hex Flange + seal Class 3 or 4

     Roof Flashing + Ridge Caps – Size: 14 (6.3mm) x 22mm Hex Flange + Seal Class 4

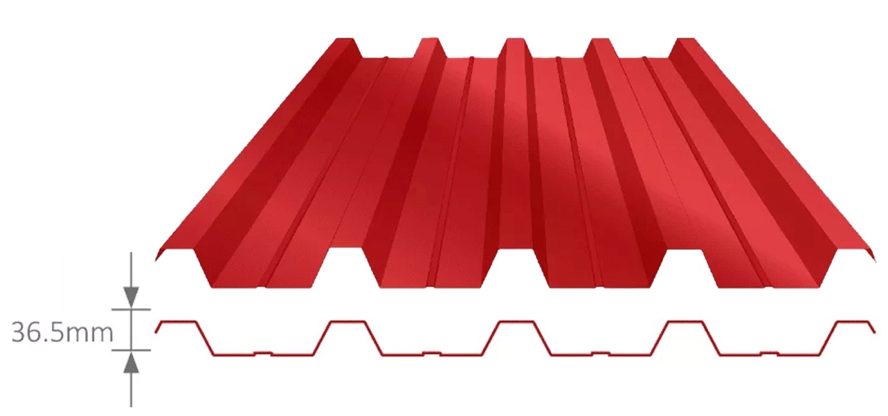

  • IBR Roof Sheeting AZ150 AZ200 ISO Class 3 And Class 4 Environments

    Fixing onto steel purlins.

    Recommended ZAP roofing fasteners.

    Class 3 or Class 4 metal.

    • 12 (5.5mm) x 65mm Hex Flange with Seal

    ________________

    Fixing onto timber purlins.

    Recommended ZAP roofing fasteners.

    Class 3 or Class 4 timber.

    • 12 (5.5mm) x 85mm Hex Flange with Seal T17

    ________________

    Side Cladding – Size: 12 (5.5mm) x 25mm Hex Flange + seal Class 3 or 4

     Roof Flashing + Ridge Caps – Size: 14 (6.3mm) x 22mm Hex Flange + Seal Class 4

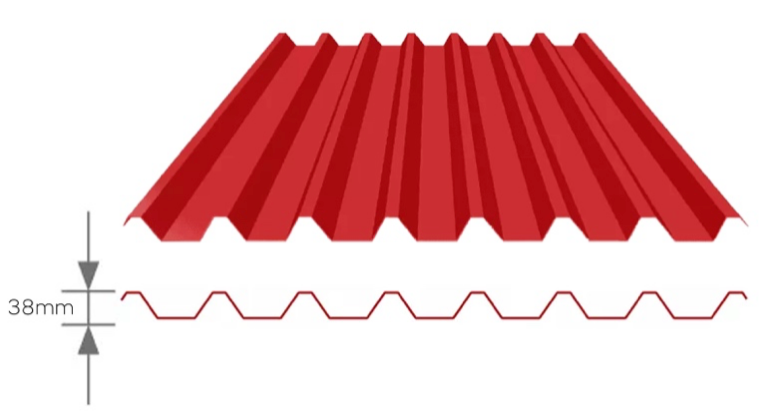

  • Industrial 7 Aluminium ISO Class 5 Environments.

    Fixing onto steel purlins.

    Recommended ZAP roofing fasteners.

    Class 5 304 bi metal

    • 12 (5.5mm) x 65mm Hex Flange with Seal

    ________________

    Fixing onto timber purlins.

    Recommended ZAP roofing fasteners.

    Class 5 304 bi metal

    • 12 (5.5mm) x 85mm Hex Flange with Seal T17

    ________________

    Side Cladding – Size: 12 (5.5mm) x 25mm Hex Flange + seal Class 5

     Roof Flashing + Ridge Caps – Size: 14 (6.3mm) x 22mm Hex Flange + Seal Class 5
